How to import SQL Server 2005 Tables into Microsoft Visio 2007 (2) ?

Published on Friday, January 21, 2011

We have already discussed "How to import SQL Server 2005 Tables into Microsoft Visio 2007 (1) ?", Now we continue the part 2:

The step part 2: Import to Visio

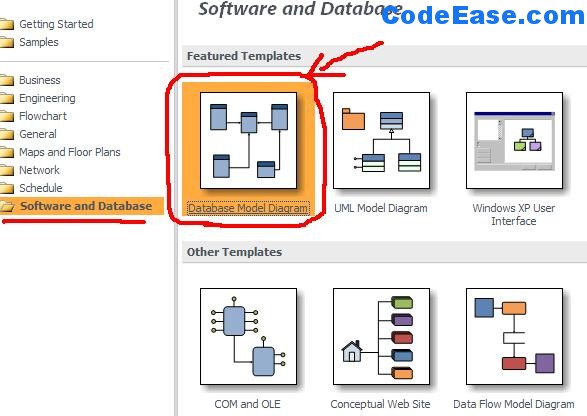

1: Open Microsoft Office Visio 2007, choose “Software and Database”, and select "Database Model Diagram":

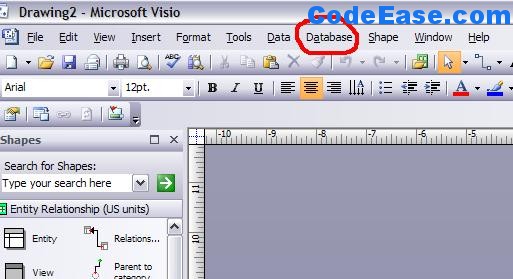

2: You will see a “Database” menu item has been added in the top menu

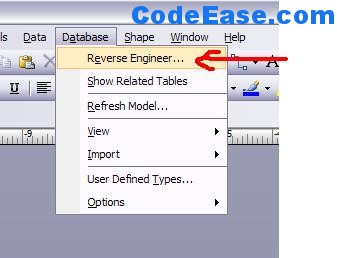

3: Choose “Database” button and select "Reverse Engineer":

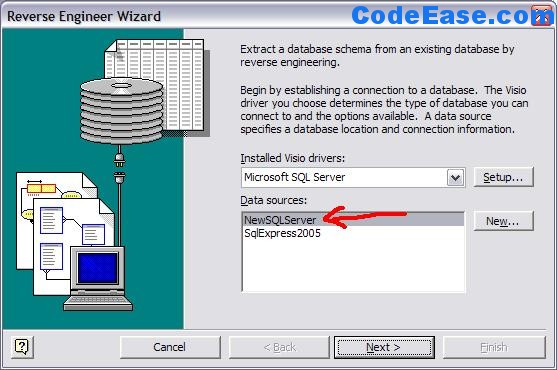

4: You will see “Reverse Engineer Wizard”, choose the new data source which you just created;

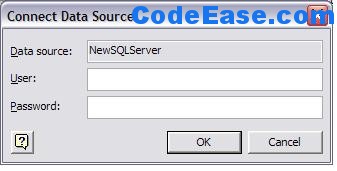

5: Click “Next”, then you input Login information, if you use Windows Authentication, then you don't need to input user name and password:

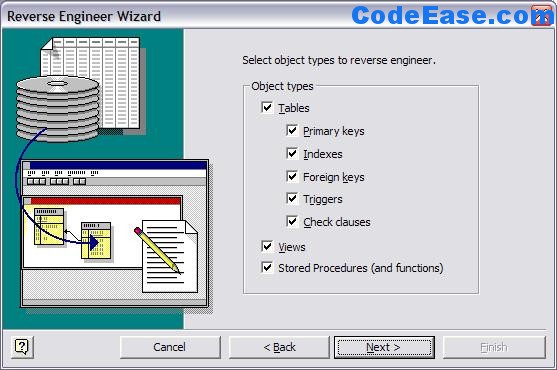

6: Then you will see the following screen, if you only need to show tables later, check off “View” and """Stored Procedure":

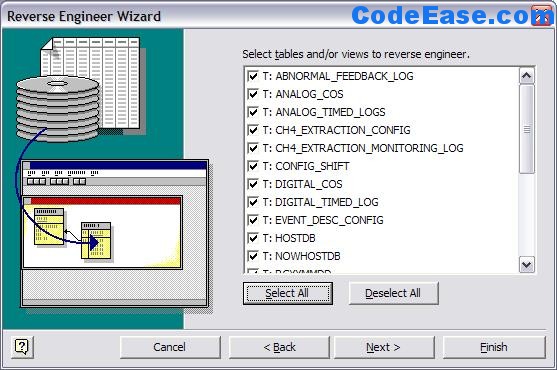

7: After click “Next”, then click "Select All" button to select all tables

8: DO not select Stored Procedure if you then see stored procedure setting screen

9: After Next, then you will see:

If you want to add the shapes to the current Visio page, then select first choose item:

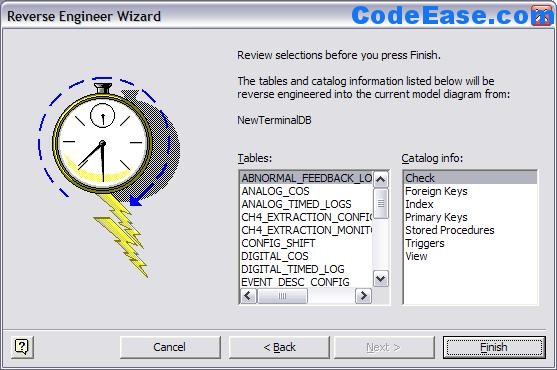

10: Give up a review screen:

11: Her you can see result:
